Holographic LED Screen technology redefines transparent digital displays with ultra-lightweight structure, 92% transparency, and seamless glass integration.
Holographic LED Screen Specifications
Holographic LED Invisible Screen
Brightness up to 3000nits
Holographic LED Invisible Screen
Innovative Commercial Display Solution

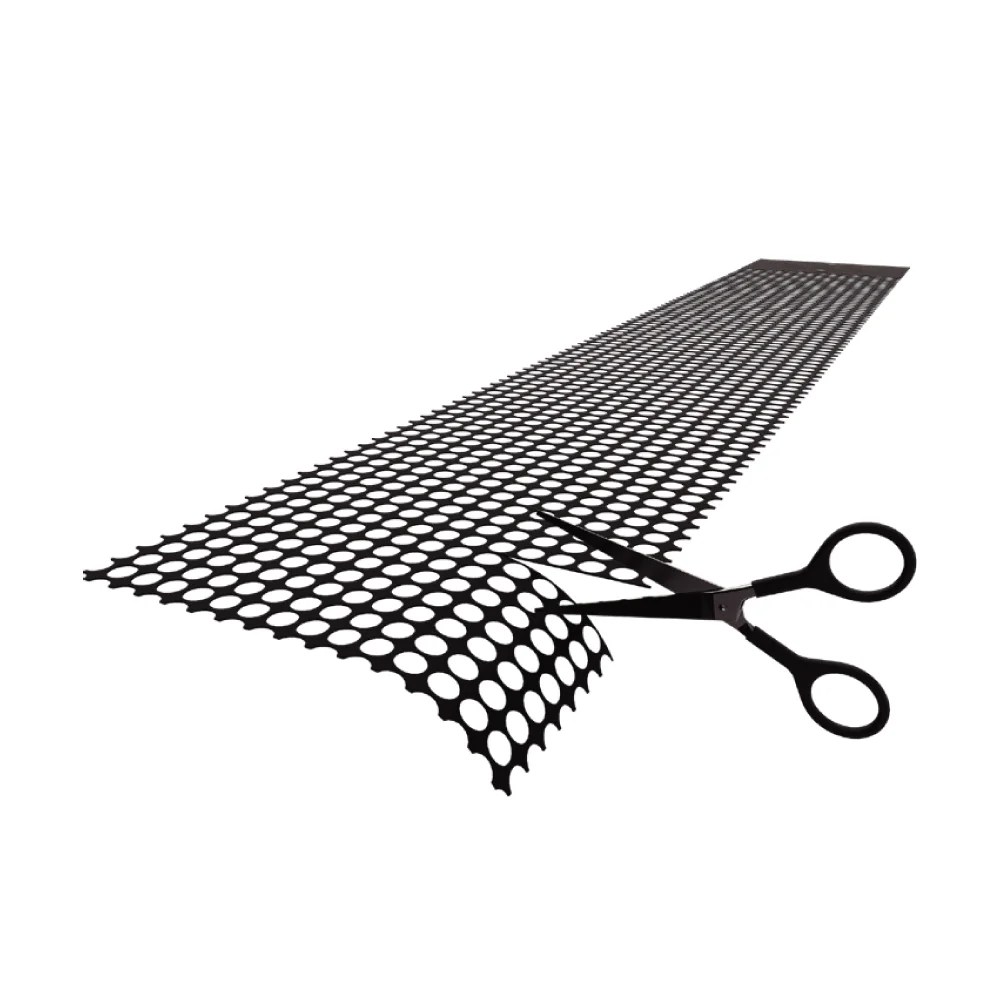

Flexible and customizable, adapting to various scenes with complex shapes. Ultra-light, ultra-thin, front and back mounted on glass, minimal installation and maintenance. 9000:1 contrast ratio for high-definition picture quality. 90% high light transmission, virtually no blockage of daylight.
Key Features
HD Display
High Permeability
Ultra Thin and Light
Simple Setup
Ultra-high Brightness
Easy Maintenance
Stable Performance
Energy Saving
Supports all-in-one display
1*1m, 2*2m, 1*2m Free splicing and unlimited The display effect is like the traditional all-in-one, movable and detachable. The display module can be increased or decreased at any time according to the usage environment.
multiple applications

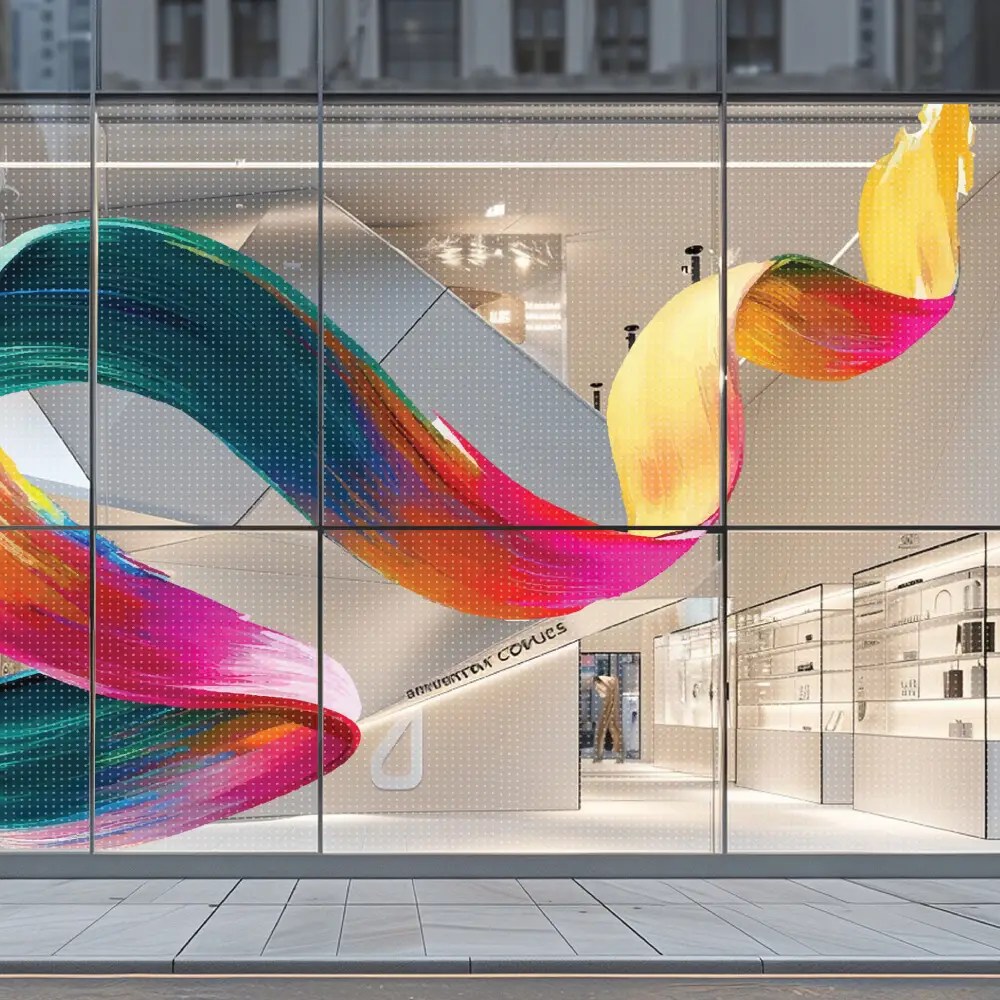

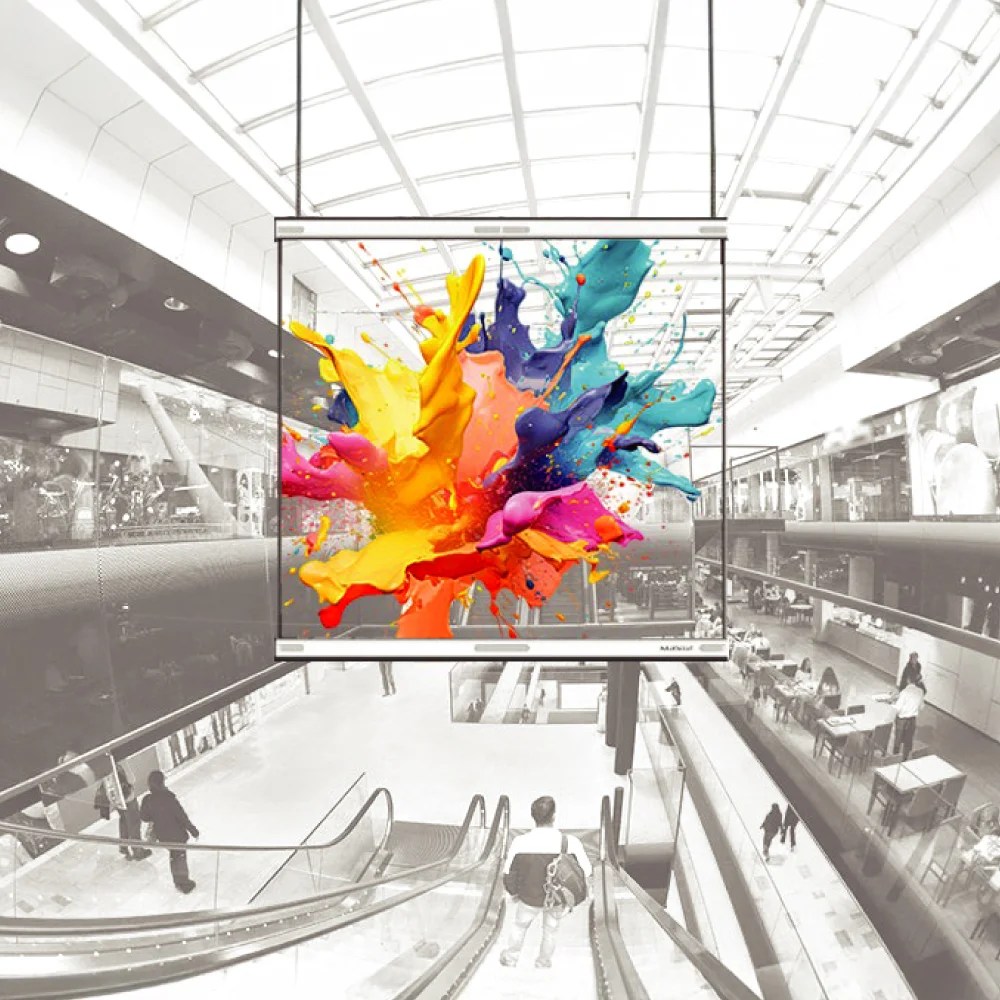

Commercial complex Brand Chain Store Advertising and Media Stage Performancer
SPECIFICATIONS
| Specification | GH-3.9 (P3.91) | GH-6.2 (P6.25) |
|---|---|---|
| Pixel Pitch | 3.91 mm | 6.25 mm |
| Transparency | 92% | 92% |
| Pixel Density | 65,536 dots/m² | 25,600 dots/m² |
| Cabinet Size | 1000×250 / 1500×250 mm | 1000×250 / 1500×250 mm |
| Cabinet Resolution | 256×64 / 384×64 | 160×40 / 240×40 |
| Brightness | 3000 / 1500 nits | 3000 / 1500 nits |
| Contrast Ratio | 9000:1 | |
| Weight | 6 kg/m² | |
| Gray Scale | 16 bit | |
| Peak Power Consumption | 800 W/m² | 500 W/m² |
| Average Power Consumption | 200 W/m² | 170 W/m² |
| Input Voltage | AC 100~240V, 50/60Hz | |
| Module Working Voltage | DC 4.2V ± 0.2V | |
| LED Control System | Same / Asynchronous | |
| Lamp Working Life | ≥10 Million Hours | |
